A 12V control box works by taking power from your auxiliary battery and distributing it through individual, fuse-protected circuits to your accessories — fridges, lights, fans, USB chargers and more. It's the central hub of a 4WD electrical system: power comes in from the battery (charged by your alternator, solar or mains), the box protects each circuit against overload, and built-in gauges let you monitor voltage and power draw in real time.
Key takeaways
- A 12V control box distributes battery power through dedicated, fused circuits to each accessory.
- Power flows in from an auxiliary battery charged by your alternator, solar panels or mains.
- Fuses and circuit breakers inside the box protect against overloads and short circuits.
- Voltage meters, shunts and USB ports let you monitor and use your power easily.
- It replaces messy direct-to-terminal wiring with one clean, safe, serviceable setup.
What is a 12V control box?
A 12V control box is a central hub for managing and distributing power in your vehicle. It lets you run accessories like fridges, lights, fans, showers and phone chargers, which makes it essential for off-grid adventures, camping and touring. For a full breakdown, see our guide on what a 12V control box is.

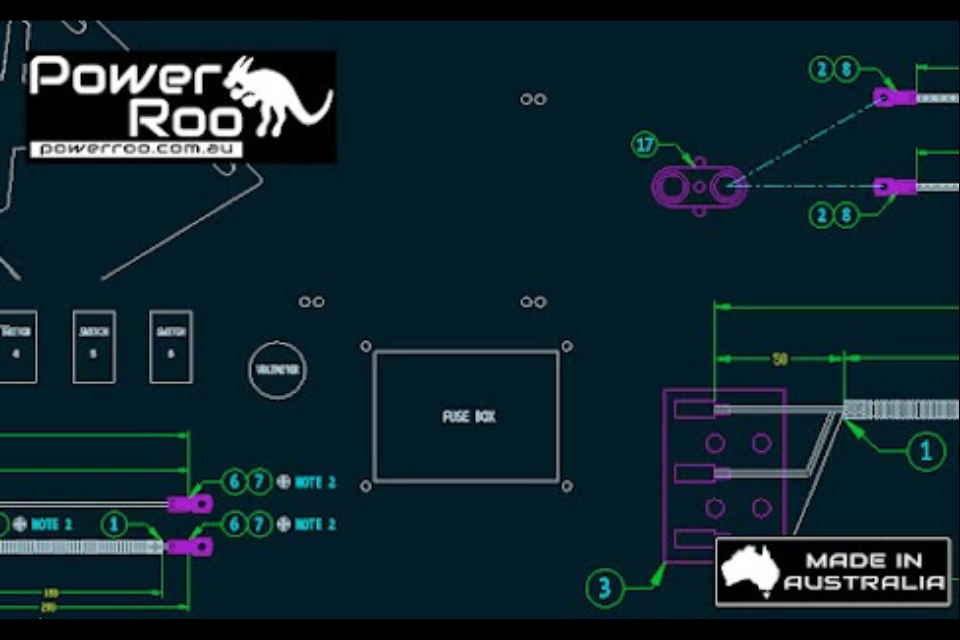

How does a 12V control box work?
A 12V control box distributes power from your auxiliary battery to your accessories in four steps:
- Power input: The box receives power from the auxiliary battery, which is charged by your vehicle's alternator, solar panels or mains power.
- Circuit protection: Inside, fuses or circuit breakers protect your electrical system from overloads and short circuits.
- Power distribution: The box feeds power to each device through its own dedicated circuit, so everything runs efficiently without risking faults.
- Monitoring and control: Many boxes include monitoring gauges and USB ports so you can track state of charge, voltage and power consumption.
Understanding 12V electrical systems
Three measurements explain how your system behaves:
- Volts (V) — the force your battery and alternator deliver.
- Amps (A) — the volume of electricity flowing through a cable.
- Watts (W) — a measure of power. Convert it with: Watts ÷ Volts = Amps.
The main components of a 12V system are deep-cycle batteries (continuous power for accessories), solar panels (renewable charging) and inverters (which convert 12V DC to 240V AC for household appliances).
Choosing the right battery for your 4WD
AGM and lithium are the two most common deep-cycle chemistries used in 12V setups. Here's how they compare:
| Feature | AGM | Lithium |
|---|---|---|
| Upfront cost | Budget-friendly | Higher |
| Weight | Heavy | Lightweight |
| Charge speed | Slower | Fast |
| Energy density | Lower | High |
| Lifespan | Shorter | Long |
| Notes | Reliable, low self-discharge, maintenance-free | Needs a BMS, temperature-sensitive |
AGM batteries are budget-friendly and reliable; lithium batteries offer superior performance at a higher cost. Choose based on your power needs and budget, and allow spare capacity to handle less-than-ideal charging conditions.
How to charge your batteries
- From your alternator: In most vehicles the alternator charges the auxiliary battery. A DC-DC charger or voltage-sensitive relay (VSR) is needed for efficient charging, especially with fixed-voltage alternators.
- From solar: Fixed or portable solar panels charge the auxiliary battery while you're stationary, giving flexible solar input to your setup.
- From mains power: A mains charger tops up the battery at home or a powered site, so you head out fully charged.
Battery management and monitoring
Mount auxiliary batteries securely in your canopy or cargo area — a custom mount may be needed for non-standard sizes. To keep an eye on performance, use a remote battery monitor or coulometer to display state of charge, voltage and real-time draw; some lithium batteries include Bluetooth apps for monitoring from your phone. Check state of charge regularly and keep connections clean and tight.
Why use a control box instead of wiring straight to the battery?
Connecting accessories directly to the battery terminals leads to messy wiring, makes multiple connections hard to manage, and can cause voltage drops and faults. A 12V control box streamlines this with a dedicated, fused circuit for each accessory — a cleaner, more organised and safer setup that's easy to expand.
How to calculate your power requirements
- List your appliances and note the amp rating of each (lighting, fridge, inverter, and so on).
- Consider usage patterns — day, evening and overnight — to understand draw across the day.
- Estimate total consumption by adding up amp-hours over 24 hours.
- Determine battery capacity from that total, factoring in whether you're running AGM or lithium.
Sizing carefully means your system meets your needs without running flat.
Installation and maintenance tips
- Wire it properly: Keep all connections secure to avoid voltage drop, and use quality cables and connectors. PowerRoo's wiring kits take the guesswork out.
- Mind size and weight: Account for the battery and solar panel, and mount everything securely for a moving vehicle.
- Plan for access: Position the box, batteries and panels where you can reach them for maintenance.
- Maintain it: Check state of charge and voltage regularly, clean solar panels, inspect cabling, and keep connections tight.
Frequently asked questions
What powers a 12V control box?
An auxiliary (deep-cycle) battery, which is in turn charged by your alternator, solar panels or a mains charger.
Do I need a DC-DC charger?
If you charge from the alternator or solar, a DC-DC charger is recommended — it manages charging safely and efficiently, particularly with modern fixed-voltage alternators.
Can a 12V control box run 240V appliances?
Not on its own. You need an inverter to convert 12V DC to 240V AC for household appliances.
How many accessories can it run?
That depends on the box's circuits and your battery capacity. List your appliances' amp draw and size your battery accordingly.
Power your adventures with confidence
A 12V control box is the heart of a reliable 4WD electrical system — distributing power, protecting against faults, and making monitoring easy. With the right battery, charging source and a quality, Australian-made control box, you can power your trips and stay connected wherever you go. Browse the PowerRoo range or get in touch for a custom solution.
